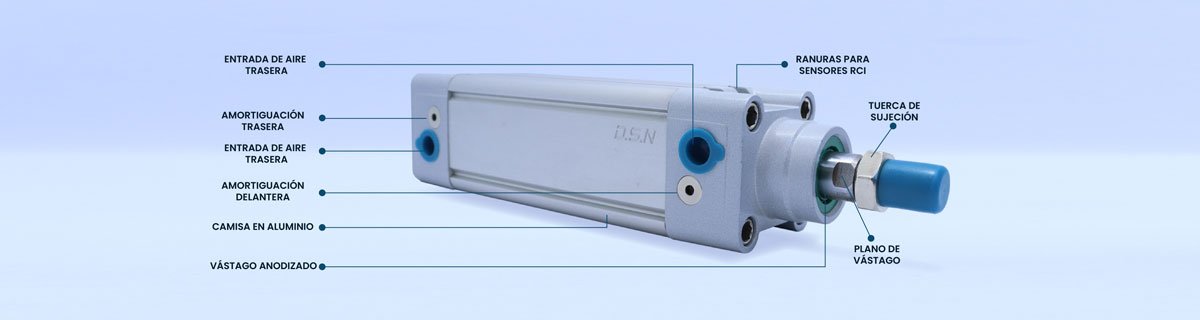

CILINDRO NEUMÁTICO PERFILADO

  • Diámetro en mm 32, 40, 50, 63, 80, 100, 125
  • Tipo de accionamiento Doble Efecto
  • Patrón de movimiento Aire Comprimido filtrado
  • Presión de prueba 1,5 MPa
  • Máxima Presión de Operación 150 psi
  • Mínima Presión de Operación 14.5 psi
  • Almacenamiento de aire estándar
  • Temperatura de uso -5~70°C
  • Velocidad de Operación 50 – 800 mm/s
  • Tamaño puerto G 1/8″ G 1/4″ G 3/8″ G 1/2″ NPT
  • Eje del Cilindro en Cromo endurecido
CANTIDAD
Cotizar

Descripción

CILINDRO NEUMÁTICO PERFILADO



Información adicional

Diámetro

"32mm", "40mm", "50mm", "63mm", "80mm", "100mm", "125mm"
Recorrido

"25mm (1")", "50mm (2")", "75mm (3")", "100mm (4")", "125mm (5")", "150mm (6")", "175mm (7")", "200mm (8")", "225mm (9")", "250mm (10")", "275mm (11")", "300mm (12")", "325mm (13")", "350mm (14")", "375mm (15")", "400mm (16")", "425mm (17")", "450mm (18")", "475mm (19")", "500mm (20")", "525mm (21")", "550mm (22")", "575mm (23")", "600mm (24")", "625mm (25")", "650mm (26")", "675mm (27")", "700mm (28")", "725mm (29")", "750mm (30")", "775mm (31")", "800mm (32")", "825mm (33")", "850mm (34")", "875mm (35")", "900mm (36")", "925mm (37")", "950mm (38")", "975mm (39")", "1000mm (40")", "1025mm (41")", "1050mm (42")", "1075mm (43")", "1100mm (44")", "1125mm (45")", "1150mm (46")", "1175mm (47")", "1200mm (48")", "1225mm (49")", "1250mm (50")", "1275mm (51")", "1300mm (52")", "1325mm (53")", "1350mm (54")", "1375mm (55")", "1400mm (56")", "1425mm (57")", "1450mm (58")", "1475mm (59")", "1500mm (60")", "1525mm (61")", "1550mm (62")", "1575mm (63")", "1600mm (64")", "1625mm (65")", "1650mm (66")", "1675mm (67")", "1700mm (68")", "1725mm (69")", "1750mm (70")", "1775mm (71")", "1800mm (72")", "1825mm (73")", "1850mm (74")", "1875mm (75")", "1900mm (76")", "1925mm (77")", "1950mm (78")", "1175mm (79")", "2000mm (80")"
